Produktinformationen "Wilwood 4-Kolben Bremssattel Forged Dynalite"

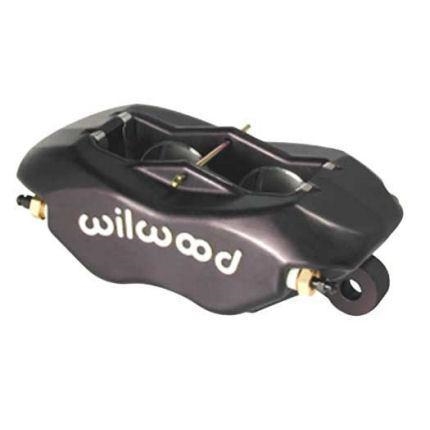

The Forged Billet Dynalite has wide spread application over many forms over motorsports. It serves as the base model in the majority of Wilwood's Bolt-On Disc Brake Kits. The latest applied developments and innovations in caliper design and manufacturing processes have resulted in substantial improvements in strength and performance over all comparable models.

Forged Dynalites are the strongest calipers in the class, with weights starting at 2.80 pounds. The process of stress-flow forging re-aligns the metal's grain structure within the contour of the caliper body. This process eliminates the breaks and interruptions to the internal grain structure that occur when machining a straight block billet. The FEA generated radial transition design eliminates steps and shoulders in the area between the piston housing body and the caliper bridges. Incorporating a radius in this transition area substantially increases resistance to deflection and caliper separation under load. Structural deflection and volume displacement tests have proven the Forged Dynalite to outperform all existing styles of this popular caliper size. Without even considering the overall greater strength and reliability of the forging, the reduced deflection tendencies and the resulting decrease in fluid volume displacement translate to increased clamping efficiency with less pedal travel. The bottom line is a taller pedal and better stopping power.

The superior strength of this innovative design is combined with proven performance features from Wilwood's earlier designs. Each caliper is equipped with Wilwood's SRS stainless steel bridge plates. The SRS plates eliminate the bridge wear caused by pad gouging and extend the service life of the caliper body. The spring-loading action of the SRS plates also eliminates pad rattle and dampens the vibration harmonics that contribute to squeal under braking. Other standard Wilwood features include high temperature seals and stainless steel pistons to eliminate corrosion and retard heat transfer from the pads. Internal fluid passages eliminate the need for external tubes. Four corner bleed screws assure simple and effective air evacuation from the system and allow one caliper to be mounted in any front, rear, right or left position. Standard race calipers feature Wilwood's signature bright black anodized finish to resist corrosion and maintain their high tech style. Polished calipers (shown at right) are also available for custom show car applications.

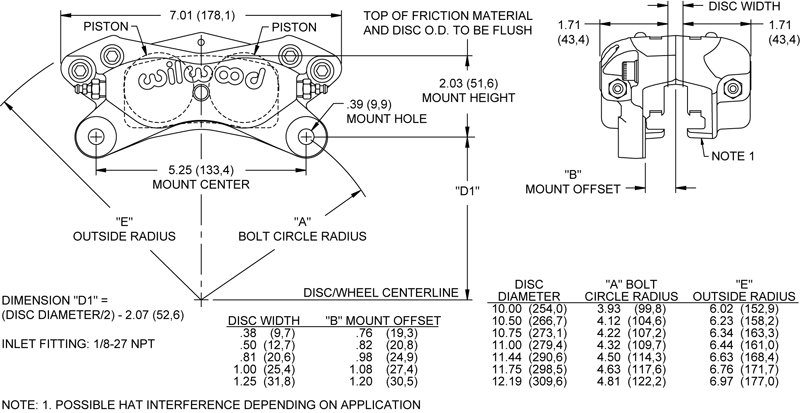

Forged Dynalite calipers are a direct replacement for all Wilwood Dynalite and similar competitive brand calipers with 5.25" centered mounting lugs. The Forged Dynalite uses the same 7112 type brake pad used in all earlier versions of this caliper. The full range of Wilwood pad compounds is available to match brake response and heat range to any application.

Angaben zur Produktsicherheit

Hersteller: Wilwood Engineering, Inc. CA 93012, Camarillo, 4700 Calle Bolero customerreply@wilwood.com

EU Verantwortliche Person: Importeur: Bernhard Schlüter Hanfeldstraße 40 · 49733 Haren · info@rennsportshop.com

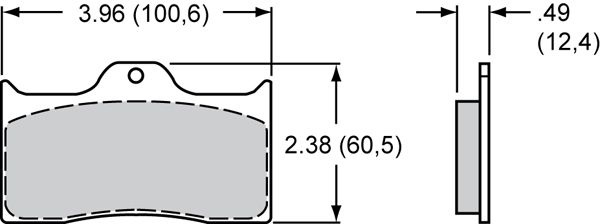

EBC Bremsbelagsatz Wilwood (7112) - DP2038 - Greenstuff
Belagabmessungen: 100x60x12mm passend für: Dynalite Billet Dynalite Cotter Pin Dynalite Forged Midilite

Lagernd, Lieferzeit: 2-3 Tage **

117,20 €*
EBC Bremsbelagsatz Wilwood (7112) - DP3038C - Redstuff
Belagabmessungen: 100x60x12mm passend für: Dynalite Billet Dynalite Cotter Pin Dynalite Forged Midilite

Lagernd, Lieferzeit: 2-3 Tage **

134,10 €*
EBC Bremsbelagsatz Wilwood (7112) - DP4038R - Yellowstuff
Belagabmessungen: 100x60x12mm passend für: Dynalite Billet Dynalite Cotter Pin Dynalite Forged Midilite

Lagernd, Lieferzeit: 2-3 Tage **

174,70 €*
EBC Bremsbelagsatz Wilwood (7112) - DP5038NDX - Bluestuff
Belagabmessungen: 100x60x12mm passend für: Dynalite Billet Dynalite Cotter Pin Dynalite Forged Midilite

Lagernd, Lieferzeit: 2-3 Tage **

181,25 €*

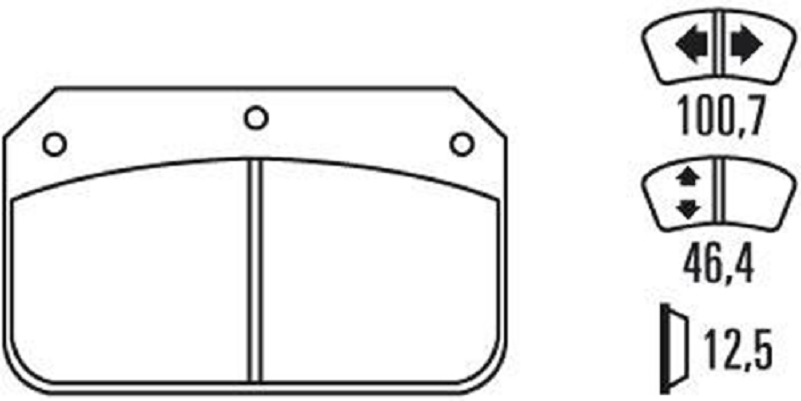

Ferodo Bremsbelagsatz Wilwood Dynalite (7112) DS2500
Der Ferodo Bremsbelagsatz (Artikelnummer FER-FRP502H) für die Wilwood Dynalite 7112 Bremssättel ist die ideale Wahl für anspruchsvolle Bremsanwendungen im Motorsport und anderen leistungsorientierten Fahrzeugen. Diese Bremsbeläge der DS2500-Serie bieten eine ausgezeichnete Bremsleistung, hohe Haltbarkeit und eine breite Betriebstemperaturpalette.Die Ferodo DS2500 Bremsbeläge zeichnen sich durch ihre hochwertige Konstruktion und das verwendete Material aus. Sie bestehen aus einer speziellen Mischung von Verbundstoffen, die eine optimale Reibung und Wärmeableitung ermöglichen. Dadurch wird eine effektive Verzögerung des Fahrzeugs und ein stabiles Bremsgefühl in verschiedenen Fahrbedingungen gewährleistet.Der Bremsbelagsatz ist speziell für die Verwendung mit den Wilwood Dynalite 7112 Bremssätteln konzipiert. Er bietet eine präzise Passform und einfache Installation. Die Ferodo DS2500 Bremsbeläge haben keine KBA-Zulassung und sind daher ideal für den Renneinsatz oder den Einsatz auf privaten Rennstrecken geeignet.Mit dem Ferodo Bremsbelagsatz (FER-FRP502H) können Sie von einer hervorragenden Bremsleistung profitieren und das volle Potenzial Ihrer Wilwood Dynalite 7112 Bremssättel ausschöpfen. Verlassen Sie sich auf die bewährte Qualität von Ferodo, einem renommierten Hersteller von Bremskomponenten, um Ihre Sicherheit und die Leistung Ihres Fahrzeugs zu gewährleisten.

Lagernd, Lieferzeit: 2-3 Tage **

109,05 €*

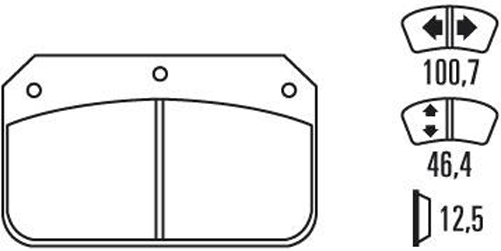

Ferodo Bremsbelagsatz Wilwood Dynalite (7112) DS3000
Belagabmessungen: 100x60x12mm passend für: Dynalite Billet Dynalite Cotter Pin Dynalite Forged Midilite

Lagernd, Lieferzeit: 2-3 Tage **

146,00 €*

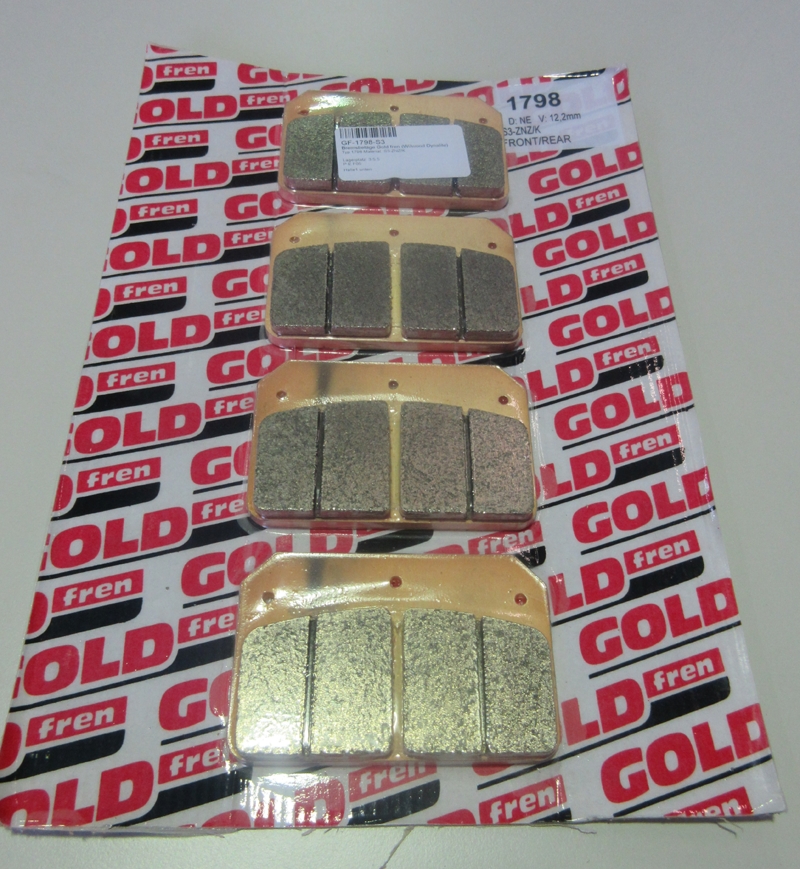

Bremsbeläge GoldFren Wilwood Dynalit) (7112) Typ 1798 Material S3-ZNZ/K
Satz (4 Stück) Sinterbelag für den Einsatz Rallye, Rallycross, Autocross, Bergrennen optimal mit Einsatz von Stahl-Bremsscheiben.

Lagernd, Lieferzeit: 2-3 Tage **

119,90 €*
Wilwood Bremsklötze (4 Stück) Polymatrix Q Pad Set Dynalite Midilite (7112)
Temperaturbereich: 260°C - 430°C Reibwert: 0,40 - 0,45

Lagernd, Lieferzeit: 2-3 Tage **

178,00 €*

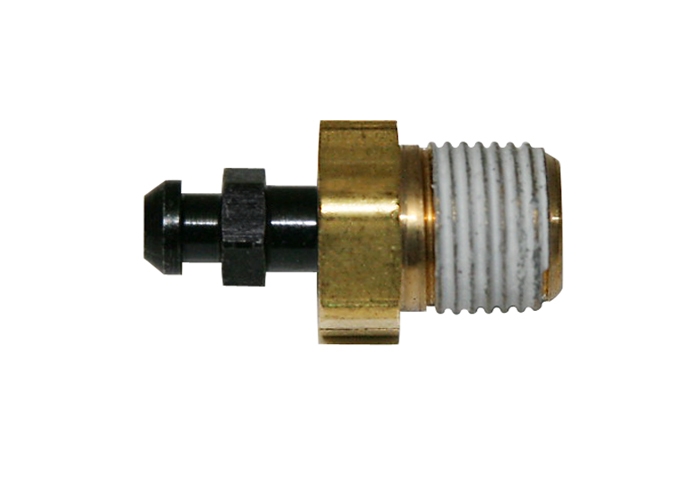

Bleed Screw Kit: 1/8x27 (4er set Entlüfterschrauben)
passend für Dynalite/ Superlite

Lagernd, Lieferzeit: 2-3 Tage **

22,00 €*
